FDME1024NZT
Manufacturer:
On Semiconductor
Mfr.Part #:
FDME1024NZT
Datasheet:
Description:

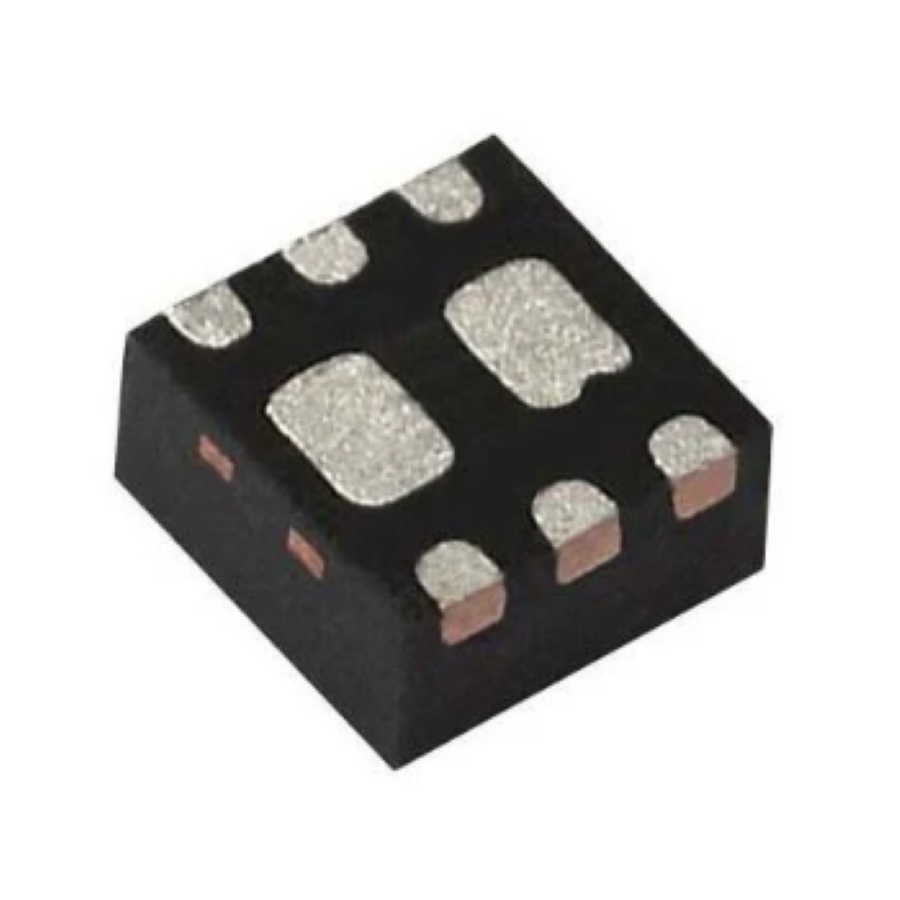

MOSFETs MicroFET 1.6x1.6-6L SMD/SMT N-Channel number of channels:2 1.3 W 20 V Continuous Drain Current (ID):3.4 A 3 nC
| Parameter | Value |
|---|---|
| Gate Charge | 3 nC |
| Gate to Source Threshold Voltage | 700 mV |
| Continuous Drain Current (ID) | 3.4 A |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Drain to Source Resistance | 55 mΩ |
| Input capacitance | 300 pF |
| Gate to Source Voltage (Vgs) | -8 V, 8 V |
| Power Dissipation | 1.3 W |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Number of Channels | 2 |
| Packaging | Reel |
| RoHS | Compliant |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.84874
Ext.Price$0.84874
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.84874 | $0.84874 |
| 10 | $0.68947 | $6.89470 |
| 25 | $0.63382 | $15.84550 |
| 50 | $0.58266 | $29.13300 |
| 100 | $0.53563 | $53.56300 |
| 300 | $0.51172 | $153.51600 |
| 500 | $0.48888 | $244.44000 |
| 1000 | $0.46395 | $463.95000 |
